Påkjøringsvern / Kollisjonsbeskyttelse
Impact protection and collision guards prevent costly damage to racking, columns, walls, doors and machines wherever forklifts, pallet trucks or lorries operate. Our range for warehouses, production, logistics and outdoor areas includes impact protection hoops, steel and flexible plastic bollards, column and rack protection, guard rails, railings, floor barriers and protection for I-beams, pipes and corners. Many products are marked yellow-black or red-white so that hazard points are visible at once. We supply businesses, municipalities and planners only; prices are net, project quantities on request.
Buying guide: impact protection and collision guards
Which protection for which risk?
| Object to protect | Suitable solution in our range |
|---|---|
| Rack corners and rack ends | steel or plastic rack protection, TÜV-tested rack protection, impact protection hoops and corner guards |
| Hall and rack columns | plastic column protection, red-white reflective or cut-to-size, column impact pads, I-beam protection |
| Walls, doors, machines | impact protection hoops, guard rails, wall protection, L- and U-shaped protection angles |
| Traffic routes and pedestrian areas | protective railings, modular safety railing, floor barriers, impact beams |

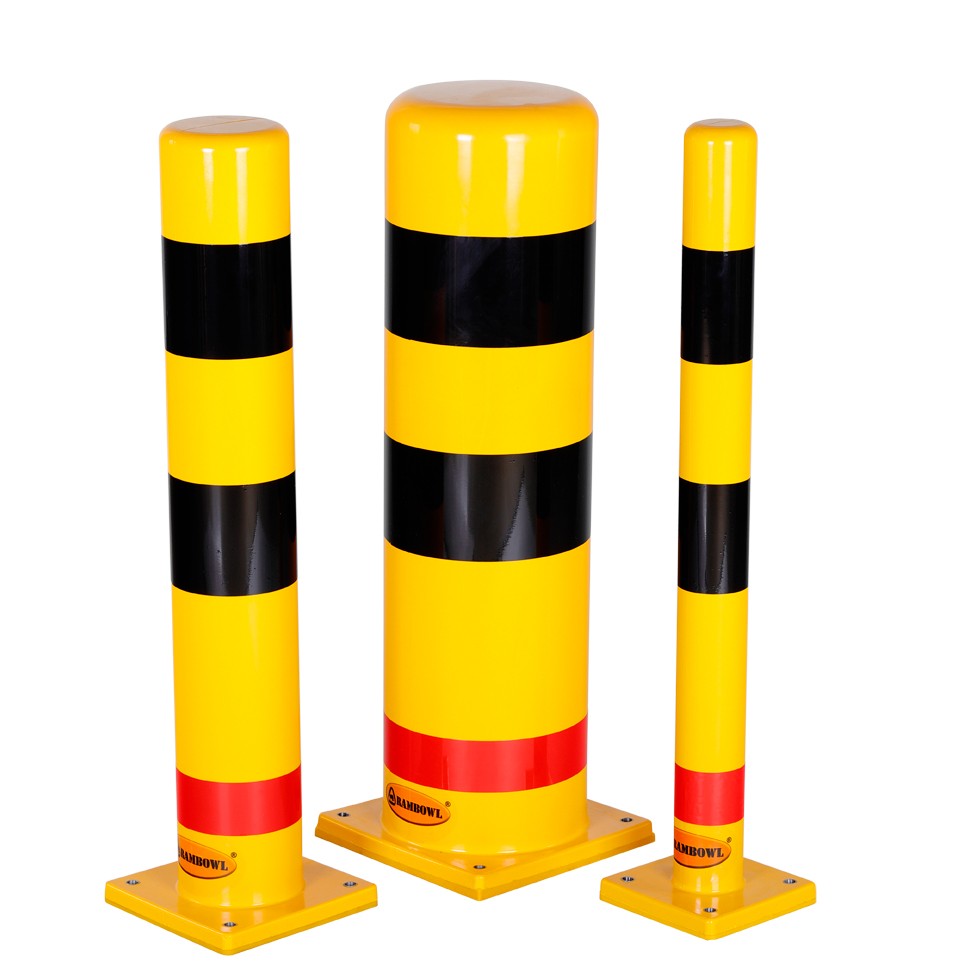

| Outdoor areas, loading zones, entrances | bollards (also removable or made to measure), lorry entry guides, wheel stops, height limiters |
Steel or plastic?

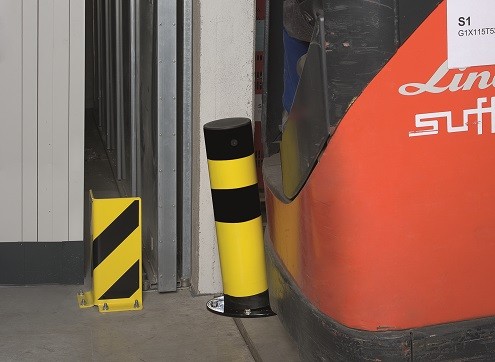

Steel impact protection – usually galvanised and coated yellow – absorbs high impact energy and is suited to forklift traffic and outdoor areas. Flexible plastic protection yields on impact, protects vehicles and floors and can partly be installed without drilling. Special solutions are available for cold stores.
Installation
Most elements are bolted down with heavy-duty anchors; bollards and hoops for outdoor use can also be set in concrete. Plastic column protection is wrapped around the column and closed. Check floor build-up, vehicle weight and approach angle before choosing a solution.
Regulations and marking
In Germany, hazard points on traffic routes are marked yellow-black or red-white in accordance with ASR A1.3. For racking, DGUV Rule 108-007 requires collision protection at least 30 cm high at rack corners in aisles used by industrial trucks. The measures required in each case follow from the risk assessment.
Frequently asked questions
Is there a difference between impact protection and collision guards?
The terms are usually used interchangeably for elements that protect building parts, equipment and people from vehicle impact.
When is rack protection mandatory?
Under DGUV Rule 108-007, racks need collision protection at least 30 cm high at corners in aisles with industrial truck traffic.
Do you offer made-to-measure protection?
Yes, for example made-to-measure bollards. Contact us for special solutions.
Are fixings included?
That depends on the product. Floor anchor sets are available as accessories; details are on each product page.
Do you supply municipalities and construction projects?
Yes. Businesses, municipalities and planners receive project quotations with net prices.
